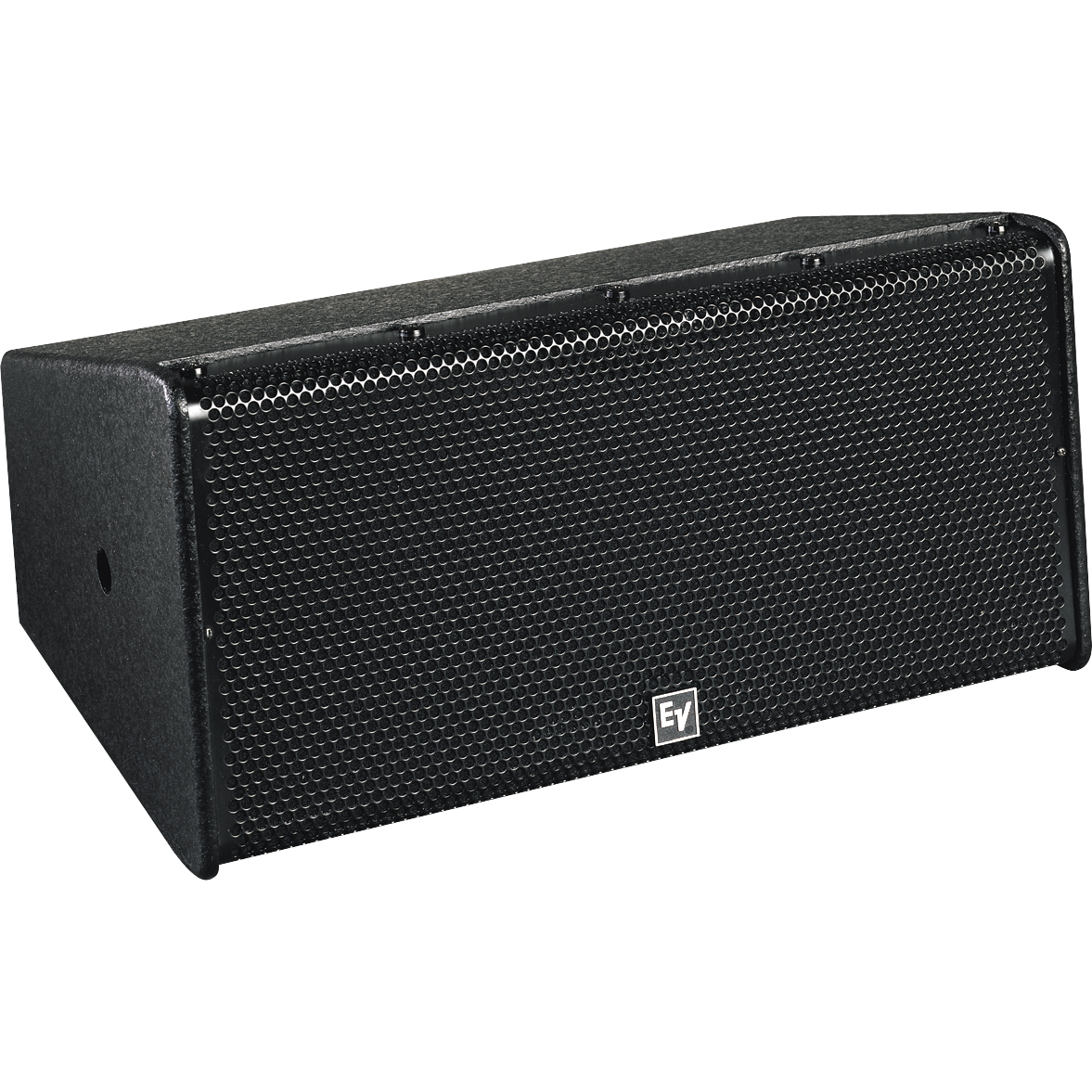

Electro-Voice Xi-1082 8-inch Two-way Full-range Loudspeaker
- Ultra-compact, low profile
- Wide-range reproduction, maximized intelligibility
- Optimal under-balcony enclosure angles
- Suited for front-of-stage and near-field use
- Trapezoidal enclosure, vented for extended LF
- 1.25-inch DH3/2010A titanium diaphragm HF driver
- Two 3/8-inch mounting bracket inserts
- Compatible with OmniMount(R) Series 100
- EVCoat finish
- Available in Black
- Mounting bracket available separately
| Axial Sensitivity (SPL, 1 W @ 1 m) | 90 dB LF/HF |
| Chassis Size | 203.2 mm (8") |
| Color | Black, White, Unfinished |
| Directivity Index | 11.2 dB (+1.8/-2.7 dB) 2.000 - 20,000 Hz |
| Input Connections | Barrier Strip (Single) |
| Long-Term Power Handling | 175 W LF/HF |
| Short-Term Power Handling | 700 W LF/HF |
| Speaker Type | Full-range |
| Transformer | No |
| Frequency Response (-3 dB) | 50 - 20000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 60 - 80 Hz 12 dB/octave |
| Max. SPL/1m (calc) | 118 dB LF/HF |
| Coverage (Nominal -6 dB) H | 90 ° Const.-dir. horn |
| Coverage (Nominal -6 dB) V | 40 ° Const.-dir. horn |
| Rotatable Horn | No |
| System Power Handling (Continuous/Program/Peak) | 175 Watts |
| LF Transducer | 8-inch |
| HF Transducer | 1-inch (DH3/2010A) |
| Crossover Frequency | 3500 Hz passive |
| Nominal Impedance (Passive) | 8 Ω LF/HF |
| Minimum Impedance | 5.8 Ω LF/HF |
| Flying | Optional |
| Outdoor | No |
| Height | 235 mm (9.25") |
| Width | 488 mm (19.21") |
| Depth | 285 mm (11.22") |
| Weight Net | 13.3 kg (29.32 lbs) |
