PreSonus® StudioLive® Series III 32SC Digital Console Mixer, Gray 2779200402

A 32-channel powerhouse packed inside a portable, rack-mountable frame, the StudioLive 32SC is a compact digital mixer that can compete with its bigger brothers, particularly when you consider its price. Thanks to AVB, it’s easily expandable—readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for additional inputs. The 32SC’s 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes—your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage-style EQ and classic compression options on every input channel and output bus.

The 32SC also ships with PreSonus Capture® recording software, which can be run directly on your mixer or Windows or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.

Electronics

Voltage

100-120V

Power Requirements

85W (Continuous)

Performance

Digital Audio Bit Depth

24

Digital Audio Dynamic Range

115 dB (A-Weighted, 48 kHz)

Digital Audio Reference Level For Zero dBFS

+18 dBu

Digital Audio Total System Latency

1.9 ms

Inputs

Line Input Connection Type

1/4" TRS, Balanced

Line Inputs Frequency Response

20-20 kHz (±0.5 dBu at Unity Gain)

Line Inputs Impedance

10 kΩ

Line Inputs Maximum Level

+18 dBu

Line Inputs Signal To Noise Ratio

94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)

Line Inputs Total Harmonic Distortion

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Microphone Input Connection Type

XLR Female, Balanced

Microphone Preamp Common Mode Rejection Ratio

65 dB (1 kHz at Unity Gain)

Microphone Preamp Frequency Response

20-20 kHz (±0.5 dBu at Unity Gain)

Microphone Preamp Gain Control Range

0 dB to +60 dB (±1 dB)

Microphone Preamp Input Impedance

1 kΩ

Microphone Preamp Maximum Input Level

+12 dBu (Unity Gain)

Microphone Preamp Signal To Noise Ratio

94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

Microphone Preamp Total Harmonic Distortion

<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Tape Maximum Input Level

+12 dBu, ±0.5 dBu

Outputs

Headphone Outputs Frequency Response

20-20 kHz (±0.5 dBu at Unity Gain)

Headphone Outputs Maximum Output

150 mW /Channel at 60 Ω

Headphone Outputs Signal To Noise Ratio

96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

Headphone Outputs Total Harmonic Distortion

0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

Line Outputs Connection Type

1/4" TRS, Balanced

Line Outputs Maximum Output Level

+18 dBu, ±0.5 dBu

Line Outputs Output Impedance

100 Ohms

Tape Maximum Output Level

+18 dBu, ±0.5 dBu

Tape Output Impedance

100 Ohms

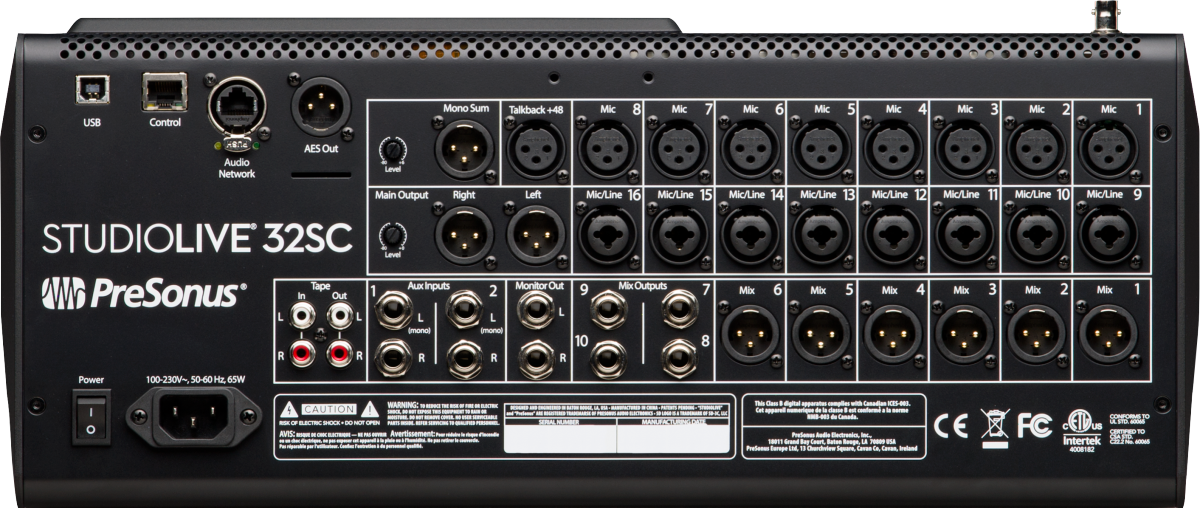

Hardware

Digital Audio AES EBU Output

XLR Male

Digital Audio AVB Audio Network Ports

Locking XLR Ethernet

Digital Audio Network Control Port

RJ-45

Digital Audio USB Recording Port

USB 2.0, Type-B

Tape Connection Type

RCA Female, Unbalanced (Stereo Pair)
