Charvel Pro-Mod San Dimas Style 1 HH FR Quilted Maple Top in Chlorine Burst

by Charvel
$1,399.99

Notify me when back in stock

MORE ON ORDER-MESSAGE US FOR AN ETA

The Pro-Mod series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need.

An ideal instrument for dazzling high-speed playing, the San Dimas® Style 1 HH FR M QM boasts scorching sound, stunning style and grin-inducing playing feel and performance. Featuring an alder body with an elegant quilt maple top, this guitar also has a bolt-on two-piece maple neck with a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Its maple fingerboard hosts 22 jumbo frets and black dot inlays, and has a heel-mounted spoke wheel for quick and convenient truss rod adjustments.

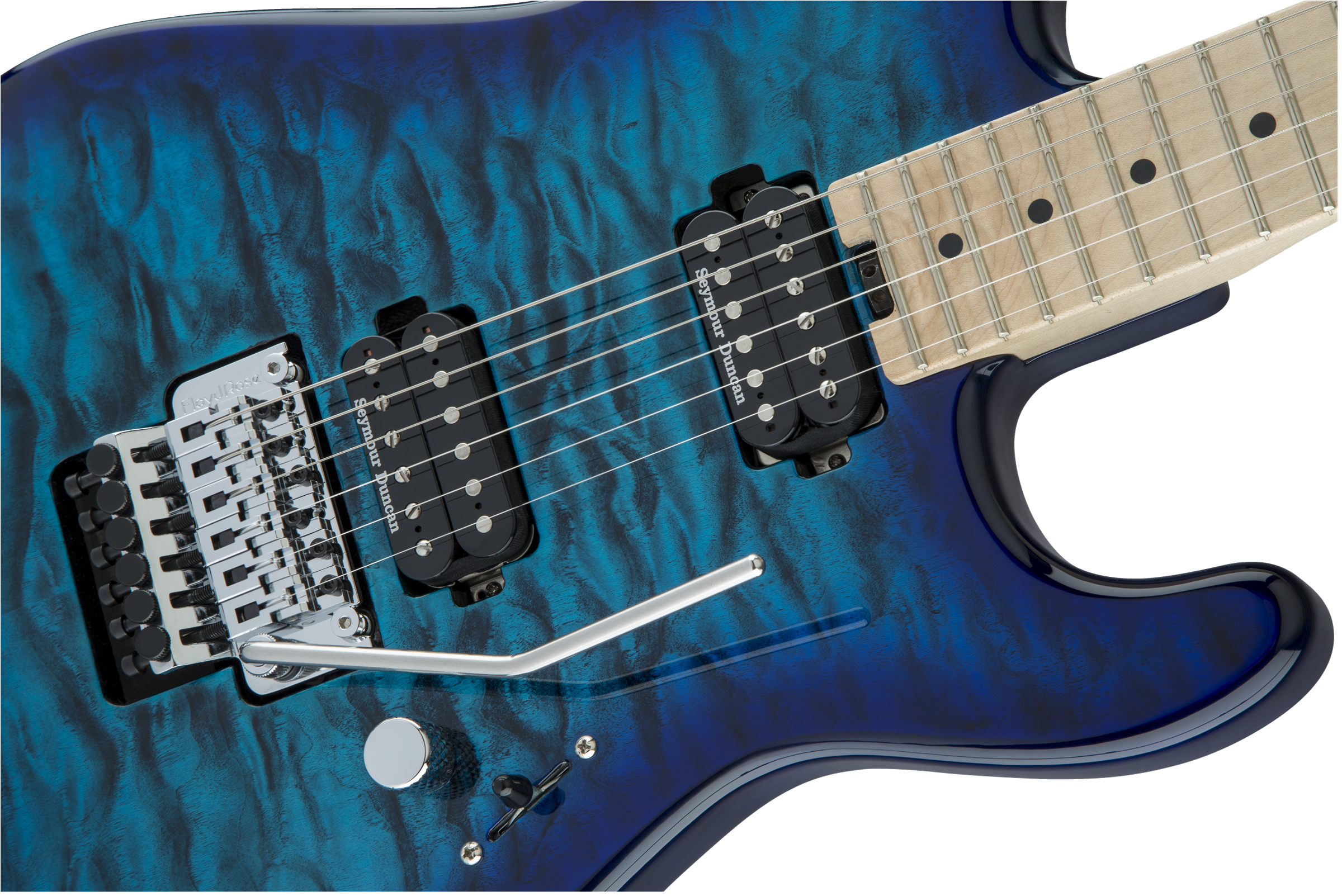

High-output Seymour Duncan® JB and Seymour Duncan '59 humbucking pickups are directly mounted to the body, cranking out high-octane rock ‘n’ roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the No-Load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound, letting the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 series double-locking recessed tremolo bridge system.

Designed with style in mind, the San Dimas Style 1 HH FR M QM is available in a variety of striking and elegant finishes, complete with a Charvel neck plate, sealed die-cast tuners and standard strap buttons.

Model Name
Pro-Mod San Dimas® Style 1 HH FR M QM, Maple Fingerboard, Chlorine Burst
Model #
2965131599
Series
Pro-Mod Style 1
Color
Chlorine Burst
Body
Alder with Quilt Maple Top
Body Finish
Gloss
Body Shape
San Dimas®
Neck Material
Maple neck with graphite reinforcement
Neck Finish
Hand-Rubbed Urethane Gel
Neck Shape
Speed Neck with rolled fingerboard edges
Scale Length
25.5" (648 mm)
Fingerboard
Maple
Fingerboard Radius
12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Number of Frets
22
Frets Size
Jumbo
String Nut
Floyd Rose® FRT 02000 Locking
Nut Width
1.6875" (42.86 mm)
Position Inlays
Black Dots
Truss Rods
Dual-Action Head Adjust
Bridge Pickup
Seymour Duncan® JB™ TB4 Humbucking
Neck Pickup
Seymour Duncan® '59™ SH1N Humbucking
Controls
Volume (push-pull coil split), Tone
Pickup Switching
3-Position Blade: Position 1: Bridge Pickup, Position 2: Both inner coils, Position 3:Neck Pickup, (split engaged) Position 1: Bridge outer coil, Position 2: Both outer coils, Position 3: Neck outer coil
Pickup Configuration
H/H
Bridge
Floyd Rose® FRT-O2000 Double-Locking Tremolo (Recessed)
Hardware Finish
Chrome
Tuning Machines
Charvel® Branded Die-Cast
Pickguard
None
Control Knobs
Knurled Flat-Top
Strings
NPS, .009-.042 Gauges
