EVH Striped Series Red with Black Stripes 5107902503

EVH Striped Series Red with Black Stripes 5107902503

by EVH
$1,849.99

Notify me when back in stock

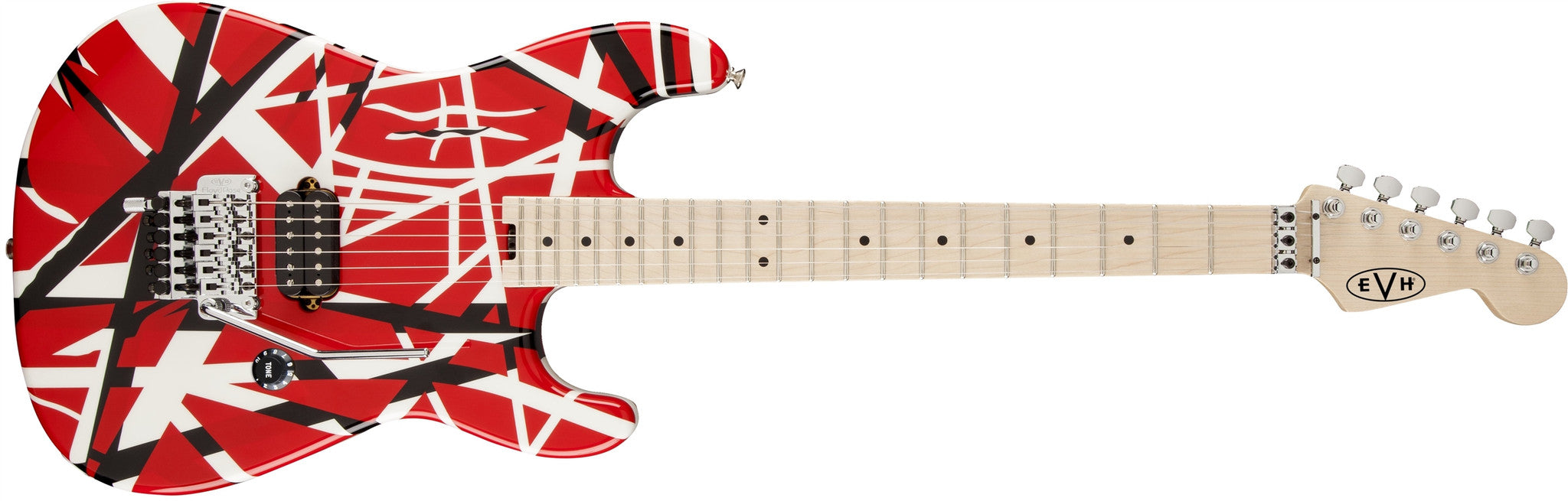

The EVH Striped Series guitar features a basswood Stratocaster-style body decked out in Eddie Van HalenÍs famed striped graphics, in red with black stripes, black with yellow stripes and white with black stripes.

The guitar also has a graphite-reinforced quartersawn maple neck with a hand-rubbed oil finish and thumbwheel truss rod adjustment, compound-radius maple fingerboard (12î-16î) with 22 jumbo frets and black dot inlays, and a single ferocious direct-mount Wolfgang humbucking pickup.

Other premium features include a single white volume control knob (labeled
ñtoneî), single-ply black pickguard (white with black stripes model only), bar string retainer and Floyd Rose locking nut, EVH-branded Floyd Rose locking tremolo with EVH D-Tuna, EVH die-cast tuners, chrome hardware, vintage-style strap buttons and EVH neck plate.
EVH Neckplate, Bar String Retainer, Thumb Wheel Truss Rod Adjustment, Vintage Strap Buttons, 1-Ply Black Pickguard (576 Only) EVH Neckplate, Bar String Retainer, Thumb Wheel Truss Rod Adjustment, Vintage Strap Buttons, 1-Ply Black Pickguard

Neck

Fingerboard Material
Maple
Fingerboard Radius
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Headstock
Licensed Fender® Stratocaster®
Neck Construction
Bolt-On with Graphite Reinforcement
Neck Finish
Hand-Rubbed Satin Urethane
Neck Material
Quartersawn Maple
Neck Shape
EVH® Modified "C" Backshape
Neck Thickness
.790" at 3rd Fret & .810" at 12th Fret
Number of Frets
22
Nut Material
Floyd Rose® R3 Locking
Nut Width
1.6875" (42.86 mm)
Position Inlays
Black Dot
String Nut
Floyd Rose® R3 Locking
Truss Rod Nut
Heel-Mount Truss Rod Adjustment Wheel


icon specs

Body

Body
Basswood
Body Finish
Gloss Urethane
Body Material
Basswood
Body Shape
Other


icon specs

Hardware

Bridge
EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Control Knobs
Black Stratocaster®-Style Skirt (Labeled "Tone")
Hardware Finish
Chrome
Neck Plate
4-Bolt Standard
Pickup Covers
Black
Strap Buttons
Oversized
String Trees
Floyd Rose® Retainer Bar
Strings
EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm
Floyd Rose® 1000 Series Locking
Tremolo Block
Brass
Tuning Machines
EVH®-Branded Gotoh®


icon specs

Electronics

Bridge Pickup
EVH® Wolfgang® Humbucking
Controls
Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
Pickup Configuration
H
Switching
None
