Korg Sampling Music Production Station ELECTRIBE2SRD
The Korg electribe2RSD sampler is a sample-based production machine that lets you construct beats at maximum speed. You can freely edit and resample using waveforms that you've loaded and preset samples. Modulation and effects can be controlled easily just by turning knobs on the top panel. In addition, a variety of input interfaces optimized for inputting rhythm, bass, or melody allow you to smoothly create sequences as fast as you can think.
The sequences that you create can then undergo additional evolution on stage or in your laptop. You can enjoy intuitive live performances that link various devices with the electribe sampler, or utilize this capability for full-fledged music production by exporting sequence data to Ableton Live for detailed editing and final mixing.
The latest system version 2 adds a much-requested pattern chain function that will be a great asset for live performances or music production. The lineup has also become more colorful with the new metallic red model. And we've also provided bonus patterns that reveal even greater sonic potential.
Making your beat-making ideas rapidly take shape. It's the electribe sampler; a sampler + sequencer that's thoroughly optimized for speed.

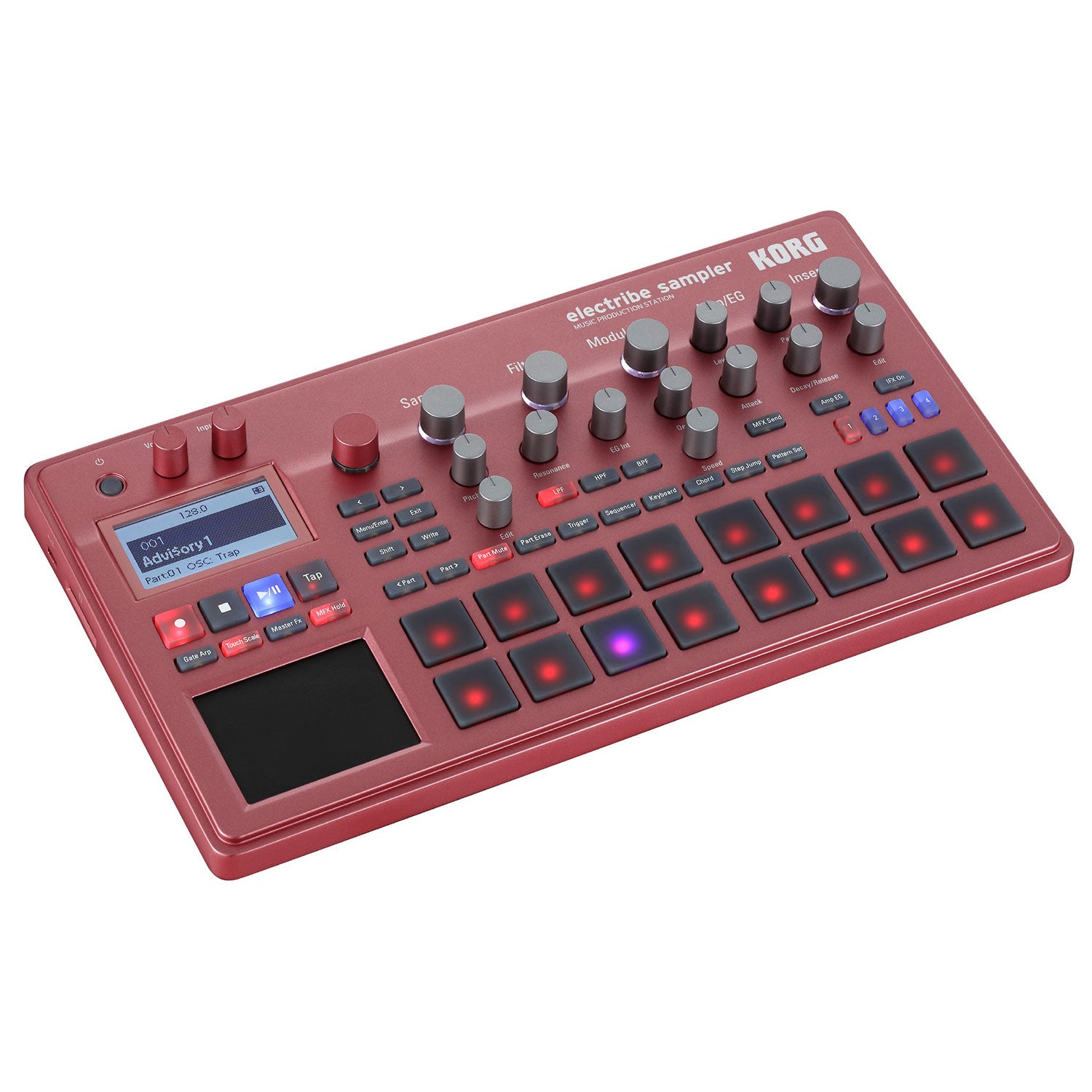

New Metallic Red Model – A Nod to the Legacy of Electribe
Following the dark black unit, the lineup has been joined by a metallic red model that's reminiscent of the previous model, the ELECTRIBE SX. Complemented by the numerous colorfully illuminated LEDs, this unit will energize your playing.
Import any Waveform and even Resample
The electribe sampler lets you load any sample from an SD card and use it for producing beats. There are 499 user sample memories in which you can store original waveforms that you've created using waveform editing software or sampled sources provided by developers. Of course you can also connect a record player or instrument to the audio in jack and sample from it.
You can edit the loaded waveforms in basic ways such as changing the start/end point or pitch, and even time-slice them. The attack portions of a phrase can be detected and sliced automatically, allowing you to play them back at a desired tempo without significantly changing the sound. Sliced parts can also be assigned to specific steps or parts and triggered individually.
There's also a resampling function that lets you sample a sound that you processed, a phrase that you constructed, or your realtime performance on the electribe sampler. Additional possibilities open up when you use this in conjunction with time slices; you can change the order or rhythmic groove of a phrase, or turn a multiple-part phrase into a single sample, allowing you to add phrases using the newly-free parts to create an even more complex pattern.
High-Quality Preset Samples that Let Your Ideas Take Shape Quickly
The electribe sampler contains numerous production-ready sampled sources that you can use as soon as you power-on the unit. It provides a range of sampled audio sources suitable for any style of music, including 179 Drum/Perc samples such as Kick and Snare sounds that are indispensable for creating beats, 33 loop-type samples as you would expect from a sampler, 31 voice-type samples, 37 sound effect samples, and 123 more instrumental samples containing hits, shots, or phrases of Piano, Organ, Brass, or Guitar. Based on these samples from collaborators famed for their high quality, such as Sample Magic, Loopmasters, Prime Loops, and Raw Cutz, you can create the exact sample sounds that you want.
In addition, the electribe sampler provides 16 analog modeling oscillators and three filters, which you can use as accents for your sample-based music productions.
Modulation Section for Quick Access to Dramatic Sound-Shaping Parameters
The modulation that's so important for sonic creativity is designed to be easy for anyone to control. Modulation sources such as EG and LFO are available paired with a modulation target such as Filter Cutoff and Oscillator Pitch; simply choose from 72 modulation types and then adjust the speed and depth to apply the type of modulation that you want.
A Wide Selection of Insert Effects Add the Final Touch to Parts and Patterns
A total of 32 insert effects are provided, including compressor, overdrive, and EQ. Effects can be specified individually for all parts, letting you have uncompromising control over the nuances of your sound.
Velocity-Sensitive Trigger Pads and X/Y Touch Pad Work Together
The electribe allows you to input up to 64 steps (16 steps x 4) for each part (sound). You can create beats by combining up to 16 of these parts per sequence pattern.
The step sequencer of the electribe allows extremely intuitive pattern production. The 16 trigger pads and the touch pad with XY control provide a variety of modes that instantly reproduce the phrases created by your ideas, allowing rhythms and phrases to be input without requiring musical knowledge.
- Trigger mode: This mode is ideal for auditioning the sounds before you enter a sequence. The trigger pads are velocity sensitive, and by striking them rhythmically you can input drum and percussion patterns that have a sense of life and movement.
- Sequencer mode: This mode is ideal for inputting rhythm. You can step-record by using the 16 trigger pads which correspond to 16 steps. This method makes it easy to see the timing of the notes, and can also be used for editing after realtime recording.
- Keyboard mode: This mode is ideal for playing melodies. The 16 trigger pads act as a keyboard, allowing you to play melodies according to the scale/key settings. You can also change the octave.
- Chord mode: This mode is ideal for playing chords. Simply by pressing a trigger pad, you can easily play chords according to the scale/key settings.
- Gate Arp mode: This mode is ideal for inputting bass riffs or hi-hat parts with a sense of groove. While playing the trigger pads or the touch pad, you can use the gate arpeggiator to generate rhythmically detailed notes.
- Touch Scale mode: This mode is ideal for those who are not comfortable with playing melodies on the keyboard, or as a way to generate some inspiration. Simply by moving your fingertip over the touch pad as on the Kaossilator, you can freely produce phrases according to the specified scale/key settings.
The electribe seamlessly lets you edit sounds and input sequences in parallel. Input a sequence and edit the sound while listening to it. Efficient beat-making that would be difficult using just a DAW becomes stress-free on the electribe, which allows you to think at the same speed as the music you're hearing.
Motion Sequence Records Parameter Movements
The motion sequence function records and reproduces knob movements. You can add time-varying movement to looped sounds, creating a completely original flow of sound.
Last Step Selector Generates Unconventional Time Signatures
The last step function lets you change the number of steps in the selected part. You can create unexpected and unconventional rhythms by specifying a different number of steps for each part. This function is also useful when you want to instantly change the character of the song, or when you want to adjust the length of the song.
Groove Adds a Natural Rhythmic Feel
You can choose from a total of 25 groove types that reproduce the playing technique and rhythmic feel of percussion instruments such as congas and bongos. By selecting a groove type for each natural-sounding rhythmic feel that's liberated from the 16-step grid.
Control Your Sequences in Real Time with Absolute Freedom
Sequences that you've created on the electribe will shine even more on stage when you use the various functions provided for this purpose. For example by using, the step jump function that lets you jump instantly to the step you press, you can create dynamic performances as though you were performing the sequence itself.
The electribe also lets you freely use the trigger pads and touch pad to add sounds during your live performance. Thanks to the scale/key settings, you'll never play a wrong note. The sequences that you create can be played not only on stage, but are also fun to tweak in real time. The dynamic character of such changes makes this one of the electribe's great pleasures.
Use Pattern Set and Pattern Chain to Build and Organize Full Arrangements
The pattern set function lets you register your favorite sequence patterns to the trigger pads and instantly switch between them. While you play, you can switch successively between patterns to vary the beat. In system version 2, a pattern change function has been newly added. Using this, multiple sequence patterns can be connected for successive playback, allowing you to construct large-scale development in your song.
X/Y Pad Offers Real-Time Effects Performance
You can use the touch pad to freely control the master effect just as on the Kaoss Pad. You can use spatial-type effects to add overall resonance, or use "Looper" to easily create the texture of your sequence, or even use effects such as "Seq Reverse" or "Odd Stepper" to aggressively transform the music. This is also enormously effective in a live performance.
Sync, MIDI, and Audio In Jacks for Integration into any Setup
Since there's a sync jack for easy connection to KORG's groove machines, you can connect the electribe to your electribe sampler, volca series unit, or SQ-1 for playback sessions that are synchronized with your sequencer. MIDI connectors are also provided for inter-operation with your DAW. By adding the electribe's performance to your laptop-based stage setup, you can take advantage of even greater performance possibilities.
The electribe is also equipped with an audio in jack. By connecting an external device and selecting the "Audio In" oscillator, you can use the filter or effect to process the external audio input, or energize your performance by using the step sequencer to turn the output on/off. In the past, machine-centric live setups required numerous synthesizers, samplers, and sequencers. Today, the electribe can function in a variety of roles, either as the master device at the center of such a setup, or as a slave device that adds sparkle to the performance. Experiment with connecting different instruments to create your very own live setup.
Inter-Operation with Ableton Live for a New Production Workflow
Using your software, you can take the numerous beats that you've come up with and assemble them into a finished product. KORG has partnered with the German company Ableton to provide a new music production workflow that uses both hardware and software.
In addition to the conventional audio export, the electribe has a function for exporting to "Ableton Live" DAW software. When the dedicated project file that's exported is loaded into Ableton Live, an independent audio file for each part is placed in each track of Live, allowing you to edit each phrase using loop, mute, or chop, and then mix the result. After the music you envision has taken shape as a sequence with the rapidity that's possible only with hardware, you can then use your software to edit the material in detail. This is the new workflow with the electribe.
Event Recorder Captures Your Performances as You Play Them
All playing gestures on the electribe, including trigger pads and touch pad operations, can be recorded by the event recorder function. The recorded performance is saved in the electribe's own format, and can be played back immediately on the electribe, reproducing the realtime operations of your live performance.
- Analog modeling sound engine + PCM sound engine
- Maximum Polyphony: 24 voices - the polyphony of the entire pattern varies depending on the Oscillator, Filter, and Insert Fx type - independent parameters for each voice have been simplified; four voices share the parameters of one conventional voice
- Oscillator: Type (409), Pitch/Glide, Edit
- Oscillator Types: Kick (56), Snare (58), Clap (16), HiHat (42), Cymbal (14), Tom (16), Percussion (55), Voice (16), Synth FX (18), Synth Hit (18), Inst Hit (16), Synth (55), Instrument (28), Audio In (1)
- Filter: Filter (Cutoff), Resonance, EG Int, LPF/HPF/BPF (16)
- Modulation: Type (72), Depth, Speed
- Amp/Envelope Generator: Level, Pan, Attack, Decay/Release, Amp EG On/Off
- Scale Types: 35
- Gate Arpeggiator Types: 50
- Sampling Frequency: 48 kHz
- AD/DA Conversion: 24 bit
- Insert Effect: One unit (can be used on each of the 16 parts) - Type (38), Edit, Insert FX On/Off
- Master Effect: One unit - Type (32), Touch Pad, Master FX On/Off, Master FX Hold On/Off
- Number of Steps: 16 steps x 4
- Number of Parts: 16 parts (one part consists of a sound, steps, insert effect, modulation sequence, etc)
- Number of Patterns: 250 patterns (200 Presets / 50 Initial) - one pattern consists of parts, master effect, key, scale setting, etc
- Motion Sequences: Up to 24 motion sequences can be stored (for each pattern)
- Groove Types: 25
- Pattern Set: Up to 64 patterns can be stored
- Pattern Chain: Up to 250 patterns can be chained
- Export: Ableton Live project file format, WAV file format (48 kHz, 16 bit)
- Event Recording: Up to 100 files can be saved
- Number of Pads: 16 pads (Velocity sensitive)
- Trigger Modes: Trigger, Sequencer, Keyboard, Chord, Step Jump, Pattern Set
- Touch Pad Modes: Gate Arp, Touch Scale, Master FX
- Audio Connectors: L/Mono, R Output (Standard phone jack), Headphones (Stereo mini jack), Audio Input (Stereo mini jack)
- MIDI Connector: In, Out
- USB Connector: Type micro B
- Sync Connector: In, Out
- External Storage: SD card
- Power Supply: AC adapter or AA batter x 6
- Battery Life: Approximately 5 hours
- Chassis: Zinc die cast
- Dimensions: 13.35 x 7.44 x 1.77 in
- Included: AC adapter (DC9V), MIDI adapter cable x 2, Ableton Live 9 lite (License card included)
