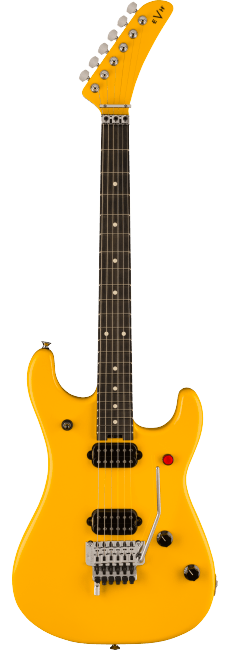

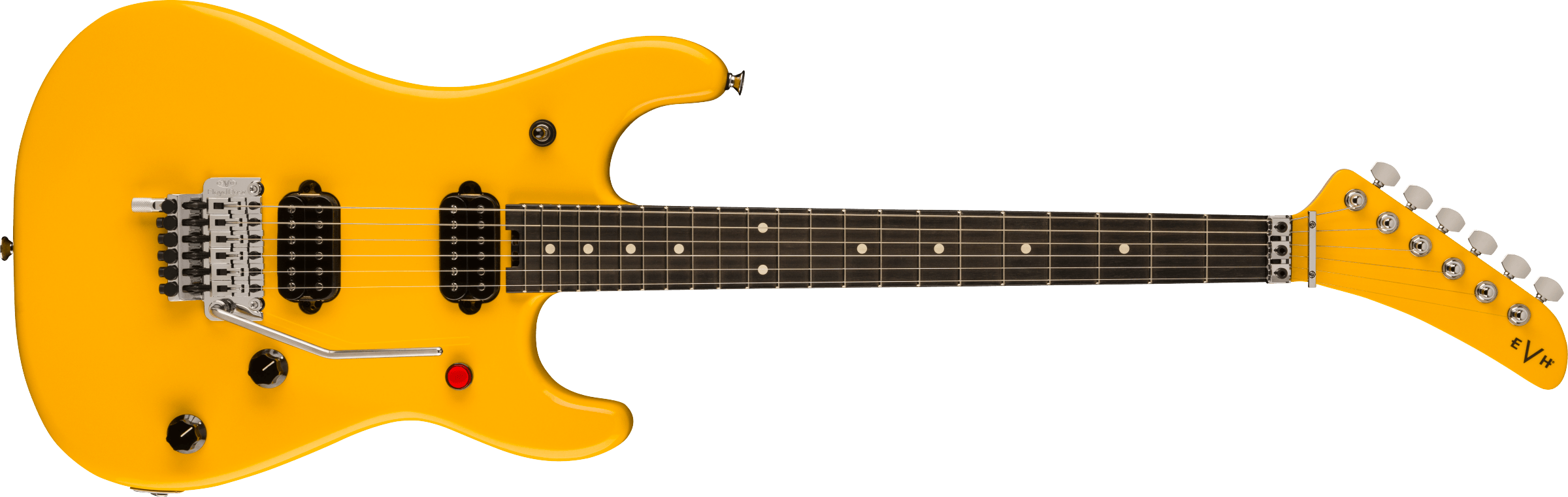

EVH 5150 Series Standard, Ebony Fingerboard, EVH Yellow 5108001504

by EVH
$1,649.99

Notify me when back in stock


Engineered for speed, comfort and full-throttle attitude, the reimagined 5150™ Series Standard is an iconic blast from the past that blends both throwback and modernized features.

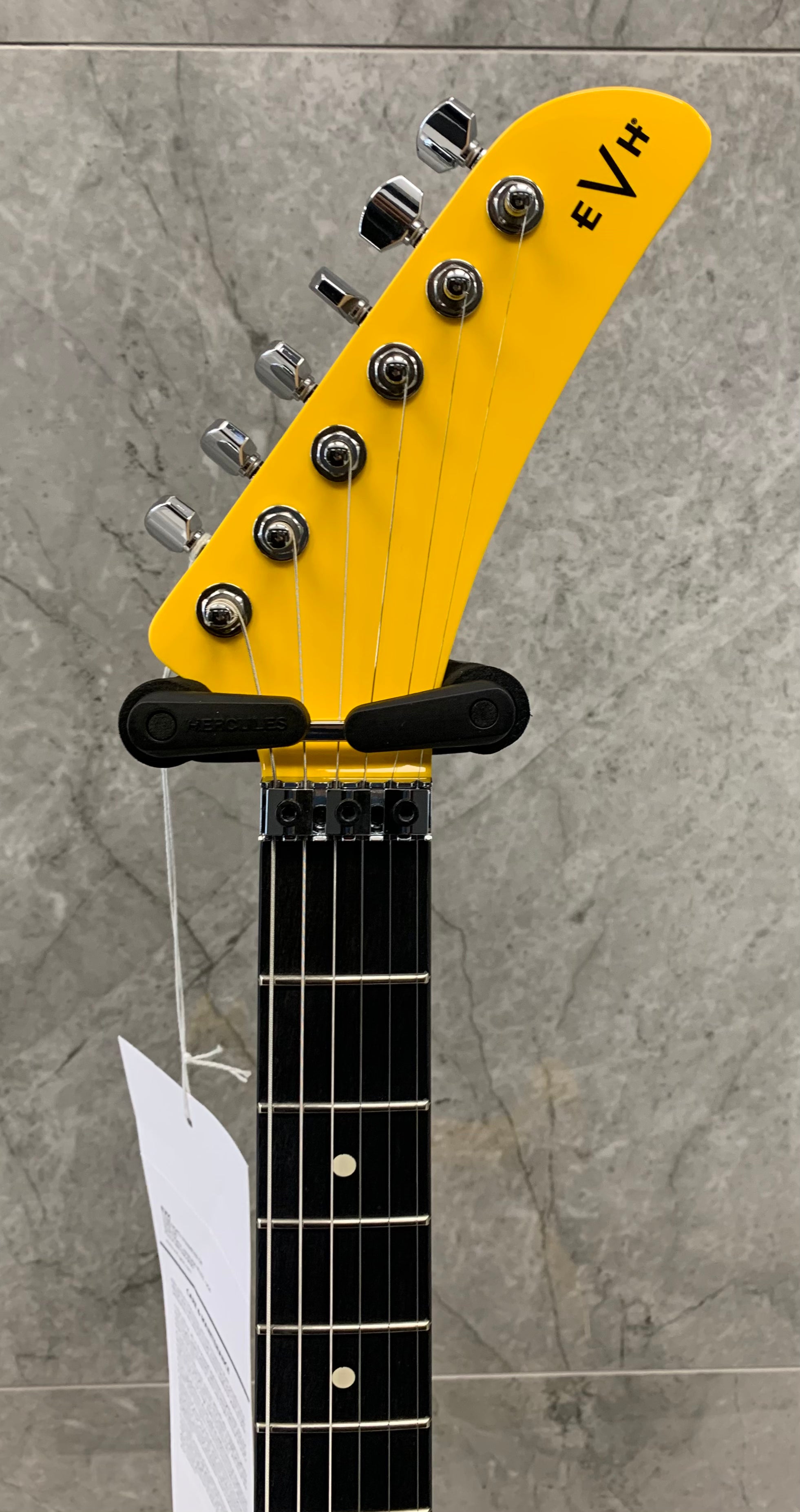

Like its predecessor, the 5150 Standard features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

Neck

EVH® Hockey Stick
Quartersawn Maple
Hand-Rubbed Satin Urethane
EVH® Modified "C" Backshape
Bolt-On with Graphite Reinforcement
.790" at 3rd Fret & .810" at 12th Fret
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Ebony
Cream Dot
Cream
22
Heel-Mount Truss Rod Adjustment Wheel
Floyd Rose® R3 Locking
1.685" (42.8 mm)
Floyd Rose® R3 Locking


icon specs

Body

Basswood
Gloss Urethane
5150™
Basswood


icon specs

Hardware

Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Brass
Black
Black Knurled with White Indicator
Black
Black
EVH®-Branded Gotoh®
Floyd Rose® Retainer Bar
EVH® Nickel Plated Steel (.009-.042 Gauges)
Floyd Rose® 1000 Series Locking
4-Bolt Standard
Oversized


icon specs

Electronics

Direct Mount EVH® Wolfgang® Humbucking
Direct Mount EVH® Wolfgang® Humbucking
HH
Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Kill Switch
