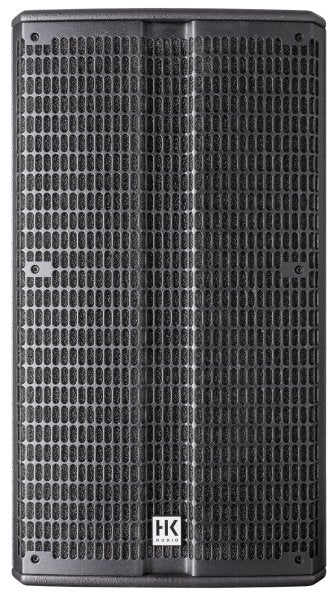

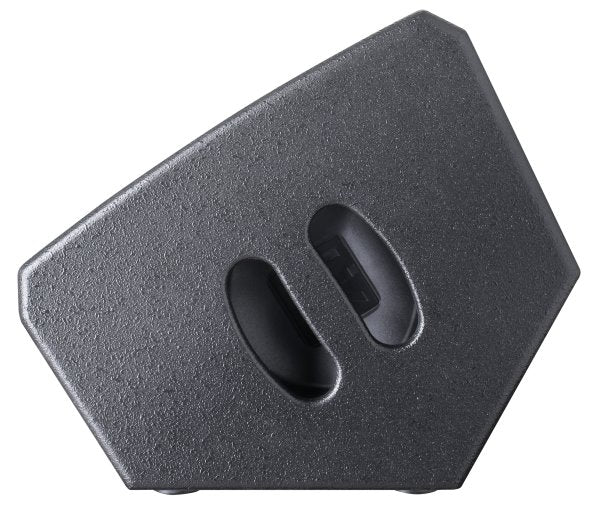

HK Audio 1000-Watt 1 x 12" Passive Monitor Brand: HK Audio Model: LINEAR-5-112-X

Power-handling nominal (RMS): 500 W

Power-handling, program: 1000 W

Frequency response +/-3 dB: 100 Hz – 18 kHz

Frequency response -10 dB: 72 Hz – 19 kHz

Sensitivity 1 W @ 1 m: 104 dB half space

Max. SPL @ 10% THD: 130 dB half space (100 Hz – 12 kHz average)

Max. SPL Peak @ 10% THD: 135 dB half space

Electrical impedance: 8 ohms

Protective circuits: PTC circuit

Low-/mid speaker: 1x 12", 2.5" voice coil

HF Driver: 1", 1.75" voice coil

Directivity: 60° x 40°, rotatable CD horn

Crossover frequency: 1.7 kHz, 12 dB/Oct.

Connections: 2x Speakon NL4

Angles up: 33°

Pole mount: DuoTilt 3°/7°

Rigging points: 3x M8 (AP-8)

Carrying handles: 1x SingleGrip, 1x MultiGrip

Housing: Hybrid (birch multiplex/MDF)

Finish: Black acrylic enamel

Front grille: 2 mm metal grille backed with black acoustic foam

Dimensions (WxHxD): 37 x 67 x 30 cm 14-9/16 x 26-19/64 x 11-13/16"

Weight: 19.5 kg / 43 lbs
