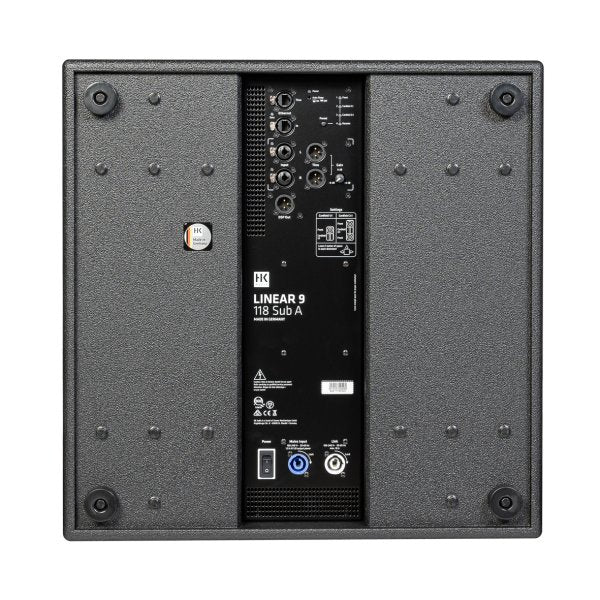

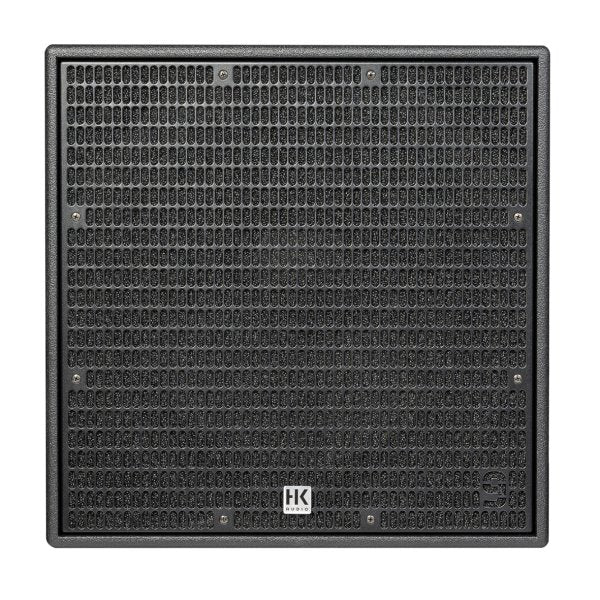

HK Audio 1100-Watt 18" Active Subwoofer Brand: HK Audio Model: LINEAR-9-118-SUB-A

Max. SPL @ 10% THD: 129 dB half space (42 Hz – 100 Hz averaged)

Max. SPL peak @ 10 % THD: 131 dB half space

Frequency response +/-3 dB: 42 Hz – X-over

Frequency response -10 dB: 38 Hz – X-over

Power amp output (RMS): 1100 W

Amp type: Class D

LF driver: 1x 18", 4" voice coil

Low-/mid speaker: N/A

HF driver: N/A

Horn directivity: N/A

Active crossover frequency: N/A

Maximum input level: +20 dBu

Analog inputs: 2x XLR combo balanced

Analog thru: 2x XLR balanced

DSP Out: 1x XLR balanced

Network port: Ethercon RJ45, 1x In, 1x Thru

Filter presets: Front, Cardioid 1:1, Cardioid 2:1, Remote

Remote software: DSP CONTROL (Windows, macOS)

DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

Sample rate: 96 kHz

System latency: Less than 2.6 ms

Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V

Power consuption: 1.9 A / 100–240 V nominal according to EN 62368-1

Clustering angle: N/A

Angles up (Monitor angle): N/A

Pole mount: 1x M20

Rigging points: N/A

Carrying handles: 2x MultiGrip

Housing: Birch multiplex

Finish: PU coating black

Front grille: 2 mm metal grille backed with black acoustic foam

Dimensions (WxHxD): 55 x 56 x 69 cm 21-21/32 x 22-3/64 x 27-11/64"

Weight: 41.5 kg / 91.5 lbs
