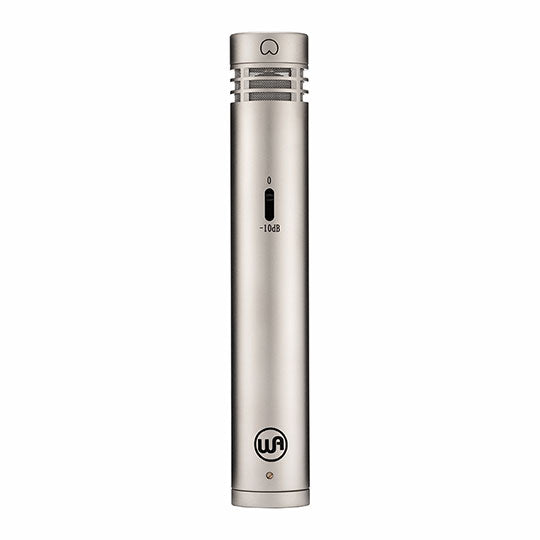

Warm Audio Small-diaphragm Condenser Microphone - Nickel WA84-C-N


Notify me when back in stock

Sound Like A Legend The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources. Large Sound, Small Size The WA-84 has a very LARGE sound for it’s small size and uniquely uses a heavy Nickel CineMag transformer in it’s signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for it’s it’s crystal clear, yet smooth, LARGE sound. Boutique Tone We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that we feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.
  • Utilizes a Cinemag USA Transformer
  • Directional pattern: Cardioid
  • Fully discrete vintage-style signal path
  • Vintage capsule recreation

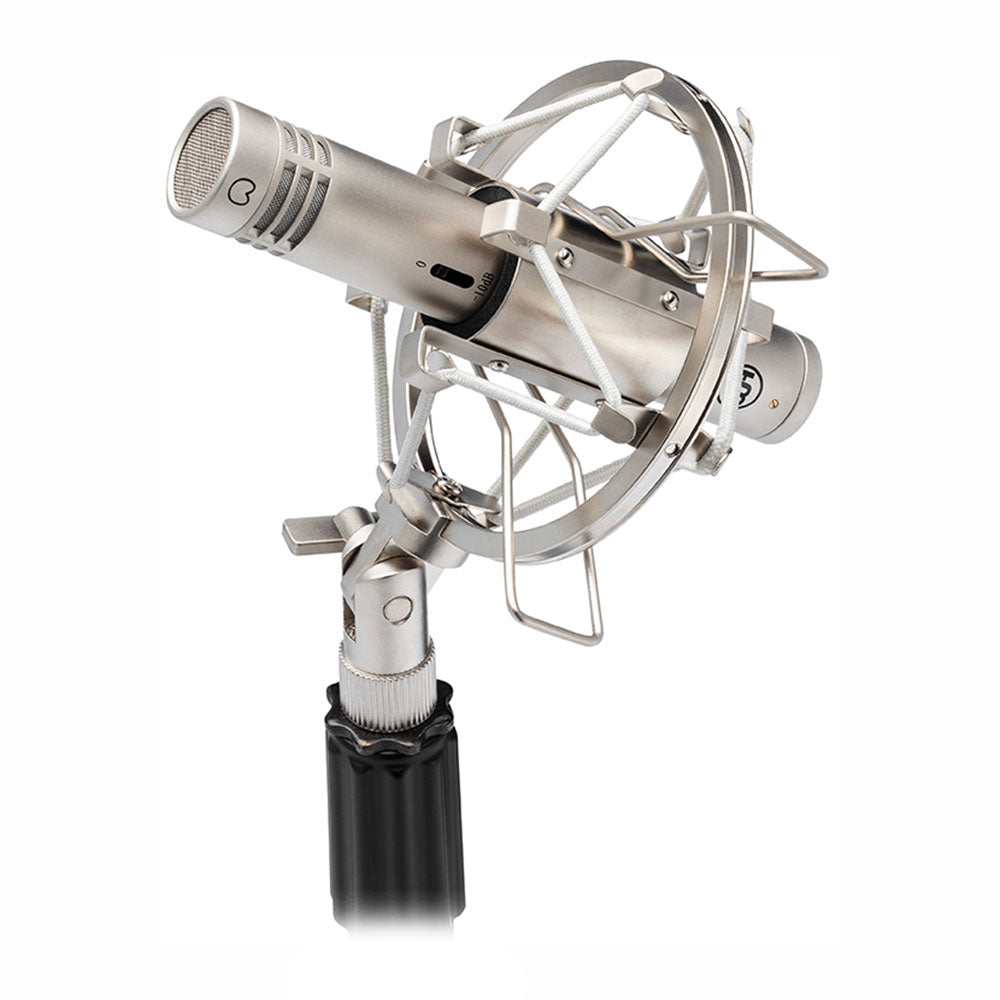

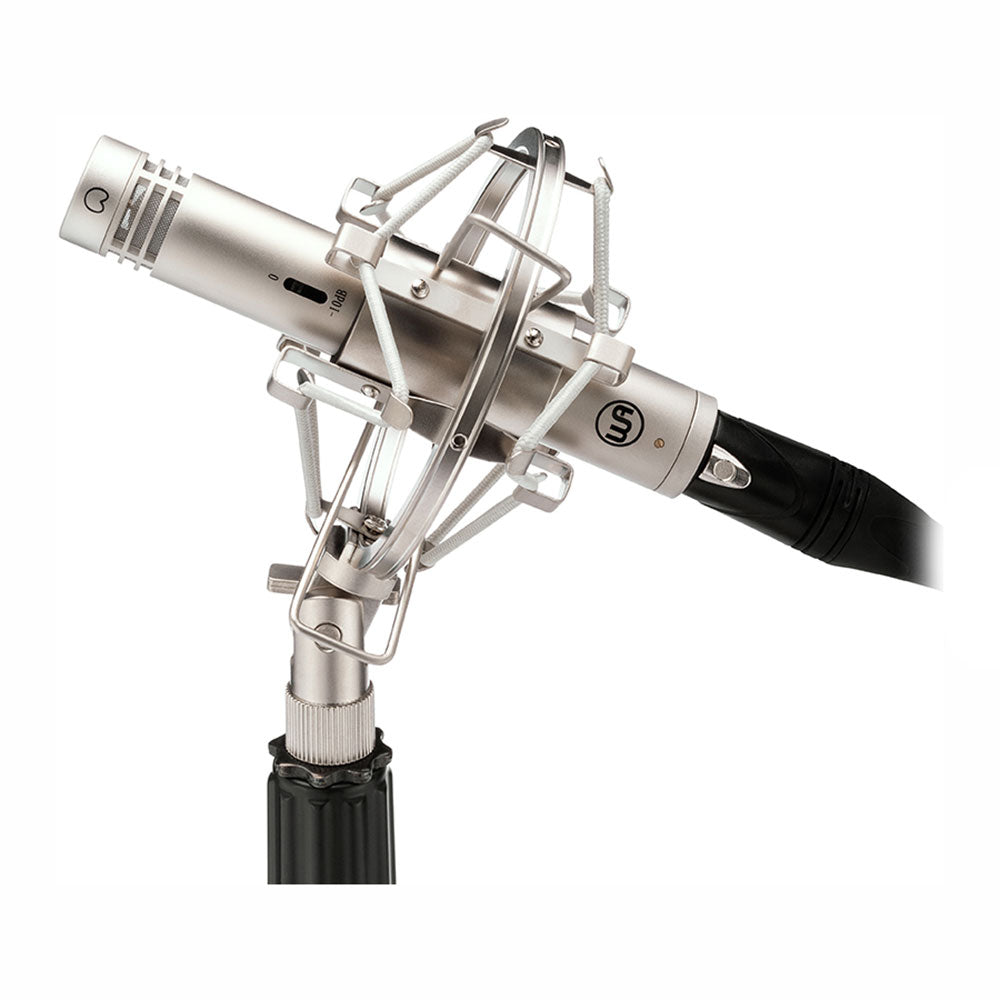

  • Package includes: Microphone, cardioid capsule, shock-mount, mic clip, windscreen and carrying case
  • 48V phantom required
  • Frequency range: 20Hz - 20kHz
  • Sensitivity: -39dB OR 11MV/PA @ 1kHz
  • Output impedance: 200 Ohm
  • Rated load impedance: =1KOhm
  • Pad: 0dB OR -10dB
  • Maximum SPL: 123/133DB @ 1kHz, 0.5% THD, 0/-10DB
  • S/N ratio: 78dBA (IEC651)
  • Equivalent noise: 16DBA (IEC651)
  • Dynamic range: 107DBA (IEC651)
  • Connector: 3-pin gold-plated XLR
  • Weight: 122g each
  • Finish: Black and Nickel
